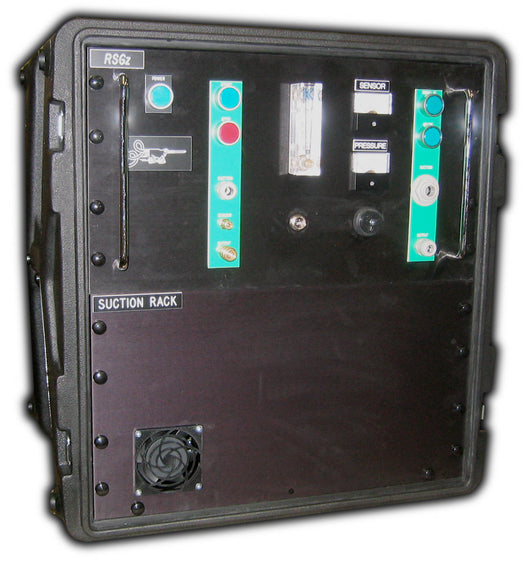

RSGz175 - Single Line, High Speed Gas Filling Machine

RSGz175 - Single Line, High Speed Gas Filling Machine

Regular price $24,489.00 Sale

Part #: RSGz175

Single line, high speed gas filler
Two or Three hole filling option; vertical fill or tilted > 10 degrees
Includes FDR gas and pressure sensors with computer control
Meters for visual display of filling process
Gas flow shuts off automatically when IG unit is full
Flow Rate = 20-175 Liters per minute (dependant on exhaust hole size)
Time to fill = 14 seconds*
Complete with filling lance, sniffler, bottle regulator, and hoses
Designed and manufactured in North America, serviced worldwide



* The "Time To Fill" that is listed for the individual machines is based on the following sized unit:

Unit Size:

Spacer:

21/32" - 0.665 - 17mm
Height:
48" - 1220mm
Width:
24" - 610mm
Volume:
767 cubic inches - 0.44 cubic feet - 12.6 liters
Area:
8 square feet - 0.74 square meters

Note: There are a large number of variables when considering time to fill. The "Time To Fill" example is the result of filling an actual unit >90% using argon gas.
