Part #: 12181
iTiG

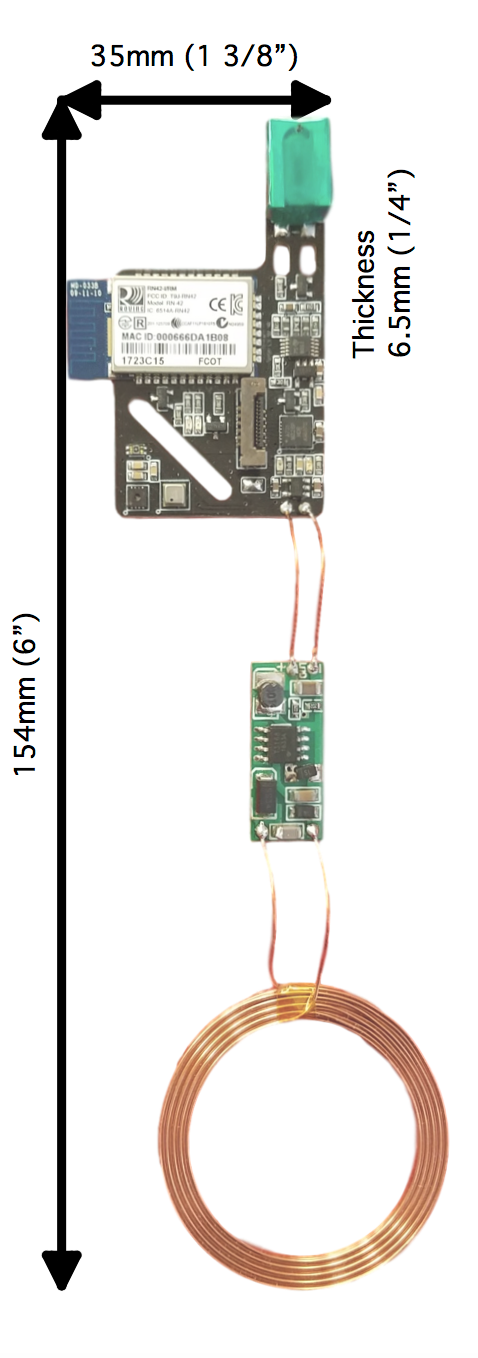

~ inside The iG Sensor ~
This model of iTiG has been replaced with part number 12230.
Argon calibration included.
Krypton calibration +$100.
*Quantity discounts are available when 10 or more sensors are purchased at a time. Contact us for details.
UV:
UVA peak sensitivity 365 nm
UVB peak sensitivity 330 nm
Range of spectral bandwidth ±10nm
UVA and UVB on different channels
Temperature compensation -40°C to +85°C
Readout is mW/cm^2 so multiply by 1000 to get microWatts/cm^2
Add uvA and uvB to correlate readings with J221-BlakRay meter
Humidity:
Range 0-100 %RH
Humidity accuracy tolerance ±2.0 %RH
Repeatability 0.1 %RH
Resolution 0.01 %RH
Absolute Pressure:
Range 10-2000 mbar or 0.145-29 psi
Resolution 0.016mbar or 0.00023 psi
Maximum error ±0.5mbar or ±0.0072 psi
Temperature compensation -40°C to +85°C
Temperature:
Range -40°C to + 85°C
Resolution <0.01°C
Thermal Conductivity Sensor:
Range 0-100% argon or krypton (Cannot differentiate between argon and krypton or measure argon/krypton mixes without an additional oxygen sensor. Contact us for details.)
Resolution 0.1%
Repeatability 0.5% (still verifying this)
Temperature compensation anticipated to be 65°F to 100°F.
Intro to components:
The RH sensor has an accuracy of ±2% RH through the temperature range 0 to 80°C. FP is a nonlinear function of only two things: RH and Temperature. If we know the RH at a given temperature then we can calculate dew point (or frost point if below freezing). If the sensor is reading 1% RH at 21°C then the frost point will be -38°C. If RH is 0.5% at 21°C then FP is -44°C. FP values are calculated using the August-Roche-Magnus approximation. The argon sensor is heated to 120-130°F so over time this heat will migrate to the RH sensor and slightly skew the RH, FP, and temperature readings. The horizontal slot cut into the circuit board helps with this heat migration but doesn’t entirely prevent it.
|
